Miniature Analog Video Phone Doorbell Camera Module QP6098
Previous
Next
Features
- CVBS Video output
- PAL system, NTSC system, 1000TVL analog camera module
- Auto white balance, auto shutter, central point correction
- Support color to black and white, Intelligent backlight compensation
Min Order: 2 pcs
Port: Shenzhen, China
Production Capacity: 80000 PCS Per Month
Payment Terms:T/T
Specification
- Optical sensor: Micron 1/3″ sensor
- Effective image pixel: 976HX496V; 1000TVL
- Working Voltage: DC 12V±10%
- Current: 55mA±10%
- FPS: 1000TVL@50fps /1000TVL@60fps
- SNR Max: 48dB
- Video output：CVBS, CVI, TVI
- Working temperature: : -20ºC～+60ºC
- Storage temperature: -30ºC～+80ºC
- Image output format: Color CVBS/PAL
- Illumination: 0.1Lux@(F1.2,AGC ON),0LUX with IR
- Dimension：55*38mm; 32*32mm; 38*38mm, option
- Lens option：3.6mm, 3.2mm, 2.8mm, option
Applications
- Building intercom vider phone doorbell system
- Time attendance device, Access control device
- Monitoring equipment (vehicle monitor, portable video collection, remote monitoring)
Request A Quote
Related Product

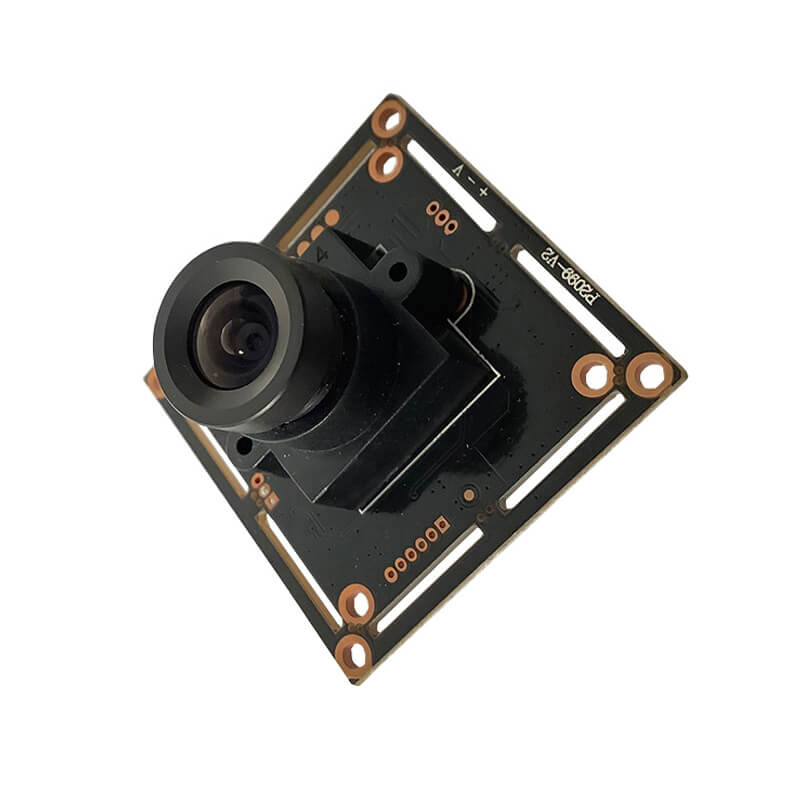

TVL CVBS 50FPS Door Opener Camera Module QP7098
Analog AHD TVI CVI Bullet Camera Module QP7080
Waterproof Analog CMOS CCD Camera Module QP7040

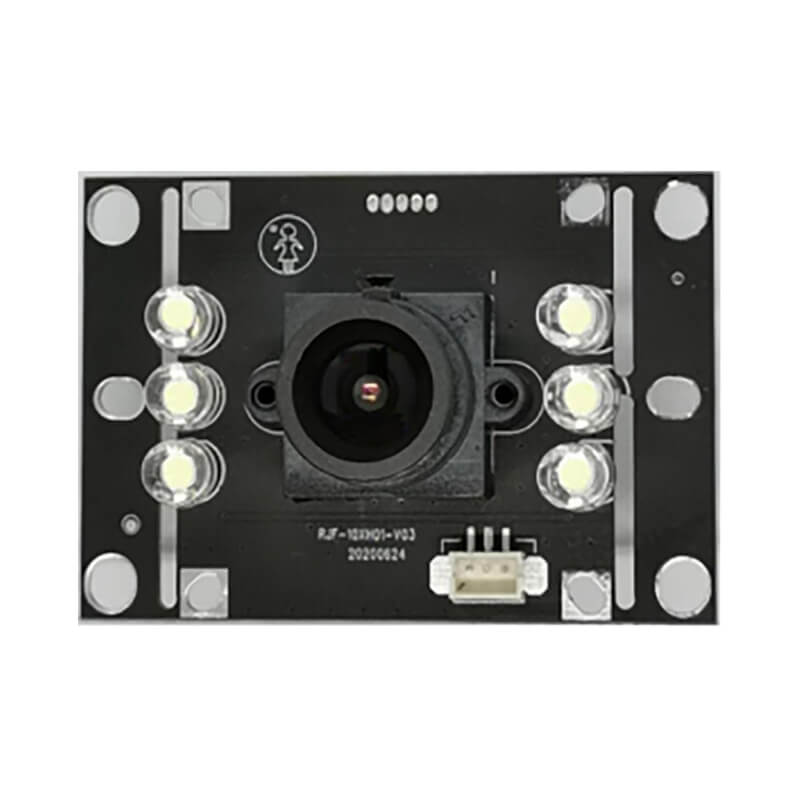

Analog Dome Building Video Intercom Camera Module QP7030
Miniature Analog Video Phone Doorbell Camera Module QP6098
Analog Security Camera Module PAL PCB Board QP5538

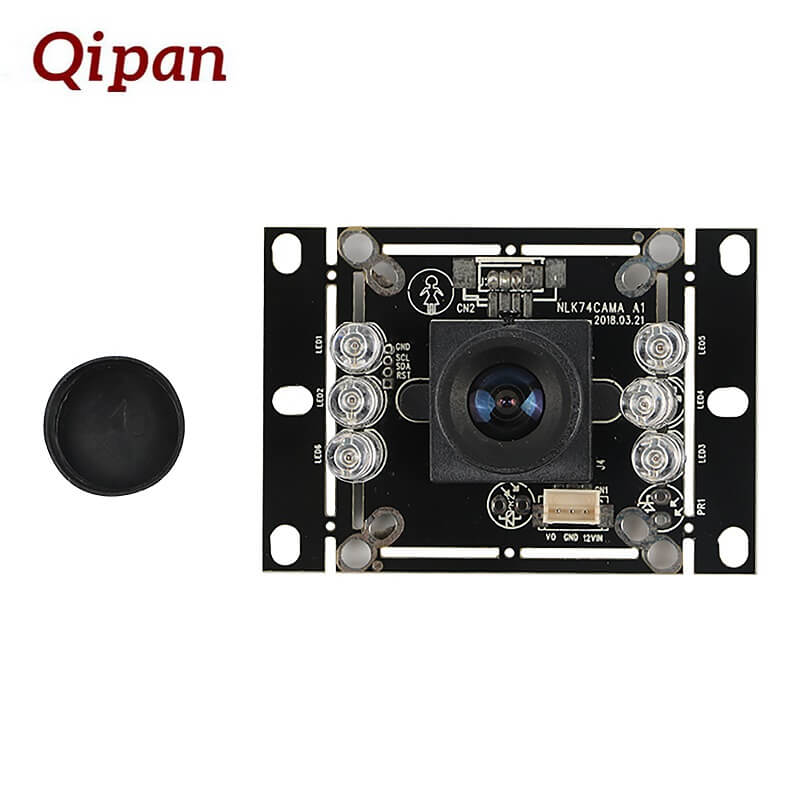

High-Resolution NTSC Analog Camera Module QP139-1
